Aluminum pipes are an essential part of numerous industries, serving a wide range of applications due to their light weight, strength, and resistance to corrosion. Among the types of aluminum pipes, aluminum seamless pipes are widely recognized for their superior quality, durability, and structural integrity. But how exactly are these pipes made? In this article, we will explore the detailed manufacturing process of aluminum seamless pipes, highlight their advantages, and compare them to welded pipes. Understanding how these pipes are made will help industries select the right material for their specific needs.

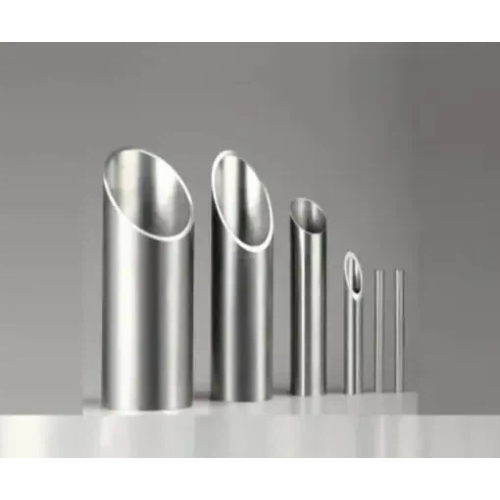

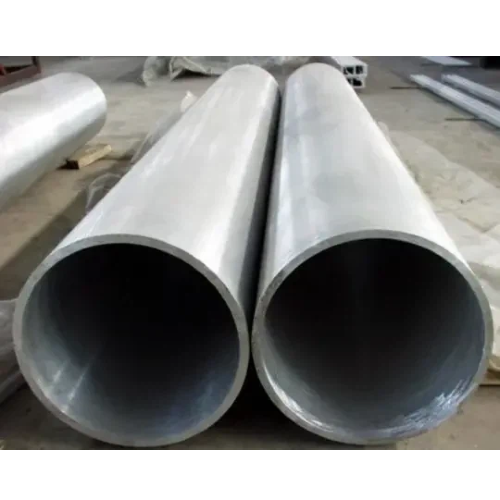

An aluminum seamless pipe is a type of pipe made from a solid aluminum billet that is heated, pierced, and extruded to form a hollow tube without the use of welding. This lack of seams gives the pipe enhanced strength and uniformity. The extrusion process eliminates the need for joints, which are the weakest part of welded pipes.
No Weld Seams: Seamless pipes do not have welded joints, reducing the likelihood of weak points in the pipe.
High Strength: The extrusion process ensures that the pipe maintains its strength across its entire length.
Corrosion Resistance: Aluminum naturally forms an oxide layer that helps protect it from corrosion.
Lightweight: Aluminum is known for its low density, which makes seamless pipes ideal for applications that require lightweight materials.
Aluminum seamless pipes are used in various industries, particularly those that demand high strength and corrosion resistance. Some of the most common applications include:
Aerospace: Fuel lines, hydraulic systems, and other critical components.
Automotive: Exhaust systems, cooling systems, and lightweight construction.
Marine: Corrosion-resistant piping for use in harsh saltwater environments.
Industrial: High-pressure fluid and gas transport systems.
The process of making aluminum seamless pipes begins with the selection of raw materials. High-quality aluminum billets are chosen for their purity and consistency. The most commonly used alloys for seamless pipes include:
6061: Known for its strength and excellent corrosion resistance, commonly used in aerospace and automotive applications.
6063: Often used for architectural and structural applications due to its excellent finish and good formability.
5083: A marine-grade alloy offering superior corrosion resistance in saltwater environments.
The quality of the aluminum billets directly affects the final product. High-grade aluminum ensures better mechanical properties, increased durability, and superior performance of the finished seamless pipe.
Once the raw material is selected, the aluminum billet undergoes a piercing process. This is the first step in creating the hollow shape of the pipe. The billet is heated to a high temperature and then pierced with a rotary piercer. This creates a small hole in the center of the billet, forming the beginning of the hollow tube.
The piercing step is critical because it defines the central cavity of the pipe. The size and uniformity of the hole are crucial for ensuring that the extrusion process goes smoothly. The pierced billet becomes a hollow cylinder, ready for the next stage in the manufacturing process.
The next step is the extrusion process, where the pierced aluminum billet is heated further and then forced through a die to elongate the hollow tube into the desired pipe shape. This is done by applying high pressure, pushing the aluminum through a mold to form the seamless pipe.
Heat Treatment: The billet is heated to a temperature where the aluminum becomes soft enough to be extruded. Typically, the temperature ranges from 800°F to 900°F (427°C to 482°C).
Forming the Pipe: The billet is pushed through a die using a hydraulic press or an extrusion press. This process elongates the pipe and gives it its final diameter and length.
Continuous Process: Since the extrusion process is continuous, it ensures that the seamless pipe is uniform in diameter and thickness along its entire length.
Uniform Thickness: The extrusion process results in pipes with consistent wall thickness, which improves their structural integrity.
Seamless Design: Since no welding is involved, there are no weak spots or joints in the pipe.
Cost Efficiency: While the extrusion process is more expensive than some other manufacturing methods, it reduces the need for post-production welding, making it cost-effective for high-performance pipes.
After extrusion, the pipe may be too large or the dimensions may not match the required specifications. This is where stretching and sizing come into play. The pipe is passed through a mandrel or a stretching machine that pulls it to the desired length, diameter, and wall thickness.
Mandrel Sizing: A mandrel is inserted into the hollow pipe to maintain its internal diameter while it is being stretched. This ensures that the pipe maintains the correct internal and external dimensions.
Stretching: The pipe is stretched further to ensure that it meets precise diameter and wall thickness specifications. This process also helps to improve the uniformity of the pipe’s surface.
The stretching and sizing process is crucial for achieving the precise specifications required by the client. Any variation in diameter or wall thickness can result in defects or failure of the pipe in its intended application.
Once the seamless pipe is extruded and sized, heat treatment may be applied to improve its mechanical properties. This process is often done through annealing, which involves heating the pipe to a specific temperature and then cooling it slowly to relieve stresses and improve ductility.
Improved Strength: Heat treatment can enhance the pipe's strength and make it more resistant to deformation.
Increased Ductility: Annealing makes the pipe more flexible, which can be beneficial for bending or further processing.
Customized Properties: Different alloys require different heat treatment processes, allowing manufacturers to tailor the properties of the aluminum to the specific needs of the application.
The final stage in the manufacturing process involves finishing and surface treatment. After the pipe has been extruded, sized, and heat-treated, it undergoes various processes to improve its appearance and durability.
Polishing: The pipe’s surface is polished to remove any surface imperfections or roughness caused by the extrusion and stretching processes.
Anodizing: This electrochemical process creates a protective oxide layer on the aluminum, which enhances corrosion resistance and increases the pipe's durability.
Powder Coating: A coating of powdered paint is applied to the surface of the aluminum pipe to improve its appearance and provide additional corrosion resistance.
Aluminum seamless pipes are well-known for their strength and durability. The extrusion process results in a uniform structure that can withstand higher pressures and mechanical stresses than welded pipes.
No Weak Weld Seams: The lack of seams means there are no weak spots where the pipe is more likely to fail under pressure.
Uniform Structure: The pipe’s entire structure is made from a single piece of aluminum, ensuring that it is stronger and more reliable.
Aluminum is naturally resistant to corrosion due to the formation of an oxide layer on its surface when exposed to air. Aluminum seamless pipes benefit from this property, making them ideal for use in marine and chemical environments.
Marine Applications: Aluminum seamless pipes are commonly used in the marine industry due to their excellent resistance to seawater corrosion.
Chemical Processing: The corrosion resistance of aluminum makes these pipes a great choice for chemical plants, where exposure to corrosive substances is a concern.
One of the primary reasons aluminum seamless pipes are favored in industries like automotive and aerospace is their light weight. Aluminum’s low density makes it an ideal choice for applications that require reduced weight without sacrificing strength.
While aluminum seamless pipes offer numerous advantages, welded pipes still play a significant role in many applications. Below is a comparison of aluminum seamless pipes and welded pipes in terms of strength, cost, and manufacturing process.
Feature | Aluminum Seamless Pipe | Aluminum Welded Pipe |
Manufacturing Process | Extrusion and piercing of aluminum billets | Welding two aluminum sheets together |
Strength | Higher strength due to no weld seams | Lower strength at the weld seam |
Cost | More expensive due to extrusion process | Less expensive due to simpler welding process |
Pressure Resistance | Excellent, ideal for high-pressure applications | Not ideal for high-pressure environments |
Corrosion Resistance | Excellent, no seams to corrode | Good, but welds may corrode over time |
Applications | Aerospace, automotive, marine, industrial | Construction, HVAC, general industrial |
Aluminum seamless pipes are ideal for applications where high strength, pressure resistance, and durability are essential. Some of the best uses for seamless pipes include:
High-Pressure Systems: Used in hydraulic systems, fuel lines, and high-pressure fluid transport.
Aerospace: Aircraft components that require lightweight yet durable piping solutions.
Marine: Pipes for ships and submarines where resistance to saltwater corrosion is essential.
Automotive: For exhaust systems, cooling systems, and structural components in high-performance vehicles.
When choosing between aluminum seamless and welded pipes, consider the following factors:
Strength Requirements: If high strength is essential, seamless pipes are the better choice.
Cost Considerations: If budget is a primary concern, welded pipes may be more affordable.
Application Needs: Evaluate the specific needs of your project, such as pressure resistance, durability, and weight constraints.
The manufacturing process of aluminum seamless pipes involves several key steps, including raw material selection, extrusion, sizing, heat treatment, and finishing. These processes ensure that aluminum seamless pipes are stronger, more durable, and more resistant to corrosion compared to welded pipes, making them the preferred choice for high-performance applications. Industries like aerospace, automotive, and manufacturing rely on seamless pipes for their strength and reliability in demanding environments.
If you're looking for high-quality aluminum seamless pipes tailored to your specific needs, Wuxi Gold Guangyuan Metal Products Factory offers expert solutions. With years of experience in producing premium aluminum pipes and providing custom fabrication services, they can meet the unique requirements of your project. Whether you're working on an aerospace, automotive, or industrial application, contacting them will ensure you get the best products suited for your needs. Reach out to discuss how their expertise can benefit your business and provide you with top-tier aluminum piping solutions.
Aluminum seamless pipes are formed by extruding a solid billet into a tube, creating a pipe without any weld seams. In contrast, welded pipes are made by welding two aluminum sheets together. Seamless pipes are generally stronger and more resistant to high pressures.
The process starts with selecting high-quality aluminum billets, which are pierced, extruded, stretched, and sized. The pipe may then undergo heat treatment and surface finishing to improve strength, durability, and corrosion resistance.
Seamless pipes are stronger, have no weld seams, offer better pressure resistance, and have superior corrosion resistance. They are ideal for high-pressure applications and industries that require high-strength materials.
Yes, due to the more complex manufacturing process, aluminum seamless pipes are generally more expensive than welded pipes. However, the added strength and durability often make them worth the additional cost.
Yes, aluminum seamless pipes are highly resistant to corrosion, making them an excellent choice for marine applications where exposure to saltwater is a concern.
