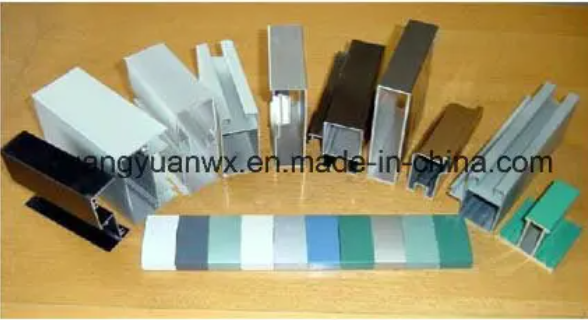

As a premium product from Wuxi Gold Guangyuan Metal Products Factory, 6m powder coated aluminum tubes profile combines 20 years of aluminum processing expertise with advanced surface treatment technology. Different from traditional aluminum tubes, the powder coated surface layer provides exceptional corrosion resistance, scratch resistance and color stability, while the 6m length meets the needs of large - scale construction and industrial applications. These tubes are available in round, square, irregular and other shapes, and support customization, making them a cost - effective choice for multiple industries.
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
Support a full range of alloy grades including 6061 aluminum alloy, 6063 aluminum alloy, 1050, 3003, 5052, etc., to meet the strength and performance requirements of different scenarios.
Adopt hot extrusion, cold drawn and seamless welding processes, with wall thickness tolerance controlled at ±0.1 - 0.25mm, ensuring high dimensional accuracy.
In addition to powder coating, it also supports anodizing, polishing, electrophoresis and sand - blasting. It can be matched according to the use environment.
The outer diameter can reach up to 600mm. The wall thickness starts from 0.1mm, and the length can be customized according to customer needs (the standard export length for 20 - foot containers is 5.8m).
Used for curtain track, structural support and building facade decoration, taking advantage of the lightweight and corrosion - resistant characteristics of aluminum tube profiles.
Applied to pneumatic cylinders, heat transfer equipment and micro - motor components, relying on the high precision and good thermal conductivity of the products.
Made into irrigation pipes, which are durable and can adapt to the harsh outdoor environment.
Used as the frame material of furniture, with various shapes and beautiful appearance after powder coating.
Attribute | Details |
Model | wxgy593 |
HS Code | 7604210000 |
Alloy Composition | Strictly follow the standard formula, such as 6061 alloy contains 0.4 - 0.8% Si, 0.8 - 1.2% Mg, etc. |
Quality Certification | Meet SGS certification standards, ensuring compliance with international export requirements. |
Packaging | Adopt standard export packaging, with PVC protective film, plastic bags and wooden cases to prevent damage during transportation. |
Yes, we support customized powder coating colors according to the customer's RAL or Pantone color card to meet the aesthetic needs of different projects.
We support flexible MOQ, and you can contact our sales team for detailed negotiation according to the specific specifications.
The 6m length can be adjusted to 5.8m according to the 20 - foot container size, which is convenient for international transportation and reduces logistics costs.
