WXGY589
OEM
SGS
Wuxi Jinagsu
7604210000
Our factory has 20 years experiences in aluminum processing and manufacturing. We provide various styles of round tubes, square tubes, and special pipes available in different sizes of excellent quality at reasonable price. We are glad to customize products according to your request.
Type: Square aluminium tube, Round aluminium pipe, Irregular aluminium pipe, Extrusion aluminium pipe, Seamless aluminium tube, and Alloy aluminium tube.Thickness: 0.1mm and above
Specifications for industrial Aluminum tube/pipe :
1) Products:Round pipe,square pipe,flat pipe,special designed pipe
2) Grade: 1050,3003,5052,5083,6005,6061,6063,6082 7075etc.
3) WT:0.3mm above
4) OD: up to 600mm
5) Length: per customer's request
6) Process: heat extrusion, welding, seamless
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
Process of industrial Aluminum Tube
Processing: hot extrusion, whole punching seamless, cold drawn etc.
Features of industrial Aluminum Tube
The relative products: Aluminum Alloy Tube, Aluminum Tube Coil, Seamless Stainless Steel Pipe, Aluminium flat tube.
Square industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1-0.25mm.
2. Alloy & temper: Grade 6000 Series, T4-T6
3. Thickness: 1.0mm or according to customer's requirements.
4. Max. Length: 6.0m, export length for 20" Container: 5.8m.
Round industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1~0.25mm.
2. Alloy & temper: 6063-T5, Grade 6000 Series.
3. Thickness: 1.0mm , according to customer's requirements.
4. Diameter: 2.5mm or according to customer's requirements.
5. Max. Length: 6.0m, export length for 20" Container: 5.8m.

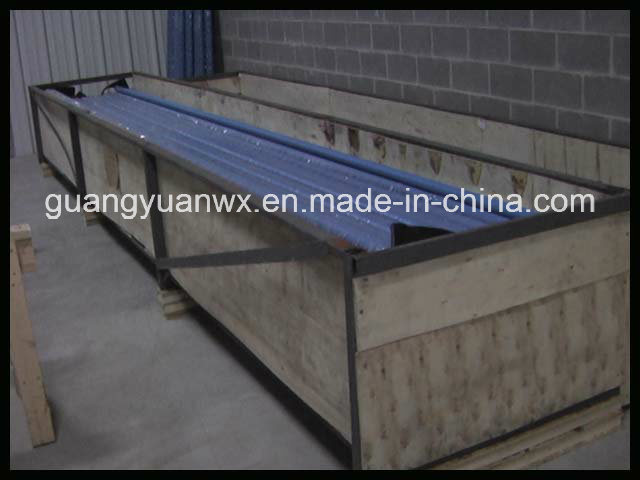

Packing for Aluminum tube/pipe:
Standard export packing, PVC protective film, plastic bag, wooden case/crate
Surface treatments of industrial Aluminum Tube/Pipe:
1) Anodizing
2) Polishing
3) Powder coated
4) Electrophoresis
5) Sand-blast
6) Coating film
etc
Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry
6) Curtain track
7) Structure support
8) Irrigation pipes
9) Furniture
Our factory has 20 years experiences in aluminum processing and manufacturing. We provide various styles of round tubes, square tubes, and special pipes available in different sizes of excellent quality at reasonable price. We are glad to customize products according to your request.
Type: Square aluminium tube, Round aluminium pipe, Irregular aluminium pipe, Extrusion aluminium pipe, Seamless aluminium tube, and Alloy aluminium tube.Thickness: 0.1mm and above
Specifications for industrial Aluminum tube/pipe :
1) Products:Round pipe,square pipe,flat pipe,special designed pipe
2) Grade: 1050,3003,5052,5083,6005,6061,6063,6082 7075etc.
3) WT:0.3mm above
4) OD: up to 600mm
5) Length: per customer's request
6) Process: heat extrusion, welding, seamless
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
Process of industrial Aluminum Tube
Processing: hot extrusion, whole punching seamless, cold drawn etc.
Features of industrial Aluminum Tube
The relative products: Aluminum Alloy Tube, Aluminum Tube Coil, Seamless Stainless Steel Pipe, Aluminium flat tube.
Square industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1-0.25mm.
2. Alloy & temper: Grade 6000 Series, T4-T6
3. Thickness: 1.0mm or according to customer's requirements.
4. Max. Length: 6.0m, export length for 20" Container: 5.8m.
Round industrial aluminium tube
1. Tolerance of frame thickness: +/-0.1~0.25mm.
2. Alloy & temper: 6063-T5, Grade 6000 Series.
3. Thickness: 1.0mm , according to customer's requirements.
4. Diameter: 2.5mm or according to customer's requirements.
5. Max. Length: 6.0m, export length for 20" Container: 5.8m.
Packing for Aluminum tube/pipe:
Standard export packing, PVC protective film, plastic bag, wooden case/crate
Surface treatments of industrial Aluminum Tube/Pipe:
1) Anodizing
2) Polishing
3) Powder coated
4) Electrophoresis
5) Sand-blast
6) Coating film
etc
Applications for industrial Aluminum Alloy Tube/Pipe:
1) Micro-motors
2) Cylinder machines without wearing sleeve
3) Pneumatic cylinder
4) Heat transfer equipment
5) Construction industry
6) Curtain track
7) Structure support
8) Irrigation pipes
9) Furniture
