Aluminum tubing is a staple in modern engineering and construction thanks to its lightweight properties, corrosion resistance, and structural versatility. But when it comes to selecting the right aluminum tubing for a load-bearing application, one question frequently arises: How much weight can aluminum tubing actually hold?
The answer isn’t as simple as quoting a number. The load-bearing capacity of aluminum tubing depends on several factors — including the tubing’s shape, size, wall thickness, alloy type, and the nature of the load (axial, bending, or torsional). Understanding these variables is critical for designers, builders, and manufacturers who rely on aluminum tubing for strength, safety, and performance.
In this guide, we’ll break down the key factors that influence the strength of aluminum tubing, analyze real-world loading examples, present data-backed charts, and explain how to calculate tubing strength using tools like an aluminum tubing strength calculator. We’ll also look at how to choose the right tube for your application and answer the most frequently asked questions about aluminum tubing and weight capacity.
Aluminum tubing is widely used in aerospace, automotive, architecture, marine, and industrial markets. Its strength-to-weight ratio makes it ideal for applications where reducing overall weight is critical without compromising strength.
Key advantages include:
Lightweight yet strong
Excellent corrosion resistance
Easy to cut, weld, and machine
Available in a variety of shapes: square, round, rectangular
Recyclable and environmentally friendly
But not all aluminum tubing performs the same under stress — and understanding the factors that influence weight capacity is essential.
Several key factors determine how much weight aluminum tubing can support:
Alloy type (e.g., 6061-T6 vs 6063-T5)
Cross-sectional shape (square, round, rectangular)
Outer dimensions and wall thickness
Length of the tube
Type of load (axial, bending, torsion)
Support configuration (fixed, pinned, free)
Let’s explore each of these in more detail.
Different aluminum alloys have different mechanical properties. For example:
| Alloy | Yield Strength (psi) | Tensile Strength (psi) | Weldability | Common Use |
|---|---|---|---|---|
| 6061-T6 | ~35,000 | ~45,000 | Excellent | Structural frames, trailers |
| 6063-T5 | ~22,000 | ~27,000 | Very Good | Architectural, decorative |
| 7075-T6 | ~73,000 | ~83,000 | Fair | Aerospace, high-performance |
6061-T6 is the most commonly used structural aluminum alloy due to its strength and weldability. It’s the go-to choice when you need tubing that can hold significant weight.
The geometry of the tubing affects stress distribution and load capacity. Here’s how different shapes perform:
| Shape | Strength Under Bending | Torsional Strength | Best Use |
|---|---|---|---|
| Round | Good | Excellent | Pressure systems, roll cages |
| Square | Excellent | Good | Structural frames, supports |
| Rectangular | Excellent (1 axis) | Moderate | Wide panel supports, architectural |
Square aluminum tubing is particularly known for its strong resistance to bending and ease of fabrication.
Wall thickness plays a crucial role in the weight capacity of aluminum tubing. For example:
A 2" x 2" square tube with a 0.125" wall can hold significantly less than one with a 0.25" wall.
Increasing wall thickness improves the moment of inertia and section modulus, increasing bending and axial strength.
To calculate this precisely, you’ll need to use an aluminum tubing strength calculator or refer to a strength chart.
To help you better understand how much weight aluminum tubing can hold, let’s examine real-world data and examples using commonly available tubing sizes.
| Size (inches) | Wall Thickness (in) | Max Axial Load (lbs)* | Max Bending Load (lbs @ 36") | Weight (lbs/ft) |
|---|---|---|---|---|
| 1 x 1 | 0.125 | ~1,000 | ~500 | 0.67 |
| 2 x 2 | 0.125 | ~2,500 | ~1,200 | 1.36 |
| 2 x 2 | 0.250 | ~5,000+ | ~3,000+ | 2.61 |
| 3 x 3 | 0.187 | ~6,500 | ~3,500 | 3.12 |
*Values are estimates under ideal conditions with centralized axial load.
These numbers illustrate that wall thickness and tube size dramatically affect weight-bearing capacity. For exact load calculations, especially in safety-critical systems, always consult an engineer.
This is one of the most searched questions related to aluminum tubing. A standard 1" x 1" square aluminum tube with a 0.125" wall thickness made from 6061-T6 alloy can hold approximately:
Axial load: up to 1,000 lbs
Bending load (36" span): around 500 lbs
Again, these values vary depending on mounting configuration and load type. Use an aluminum tubing strength calculator for project-specific numbers.
To get precise values for your project, you can use an aluminum tubing strength calculator. These tools let you input:
Tube dimensions
Wall thickness
Alloy type
Load type (axial, bending, torsional)
Span length
The calculator then outputs:
Maximum allowable load
Deflection under load
Stress distribution
Safety factor
This is particularly useful for engineers and designers working on custom frames, supports, or mechanical systems.
Aluminum angle is another common structural component used in brackets, supports, and framing. The load it can hold depends on size and orientation.
A standard 1/8" aluminum angle (e.g., 1.5" x 1.5") can support around 300–600 lbs over a short span.
A larger 2" x 2" x 1/4" aluminum angle can support over 1,000 lbs depending on how it's mounted.
If you’re wondering specifically how much weight can 1/8 aluminum angle hold, the answer is: not much for structural loads—but it’s great for light-duty bracing.
Let’s say you’re building a trailer frame using 2" x 2" 6061-T6 aluminum square tubing with a 0.125" wall thickness. Here's what to expect:
Axial load capacity: ~2,500 lbs per vertical support
Bending resistance (horizontal): ~1,200 lbs over 3 feet
Shear strength: ~30,000 psi
With proper engineering and bracing, this tubing can be used in lightweight trailers, ATV ramps, and modular support frames.
Even with strong theoretical values, real-world usage can reduce aluminum tubing’s effective load capacity. Consider:
Mounting method (welded vs bolted)
Tube length and span
Point load vs distributed load
Temperature and corrosion exposure
Vibration or repeated loading (fatigue)
Always apply a safety factor to your calculations—typically between 1.5x and 3x—depending on application criticality.
Aluminum tubing is used in load-bearing structures across multiple industries:

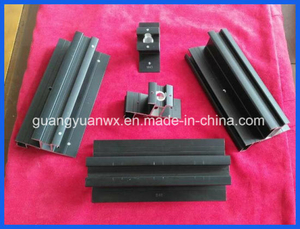

Solar panel mounting systems
Greenhouse frames
Boat towers and marine railings
Aerospace fuselage frames
Portable staging and scaffolding
Vehicle trailers and tool racks
In each of these cases, the tubing must be carefully chosen to match load demands, environmental exposure, and design lifespan.

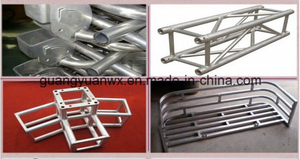

Guangyuan specializes in manufacturing high-quality aluminum tubing for structural and industrial use. Their products include:

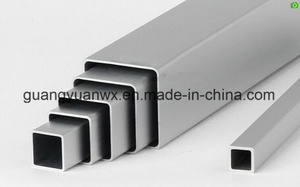

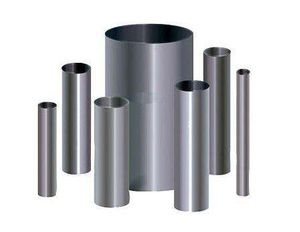

Square, round, and rectangular tubing
6061 and 6063 alloy options
Custom extrusion capabilities
Tight dimensional tolerances
Weldable and anodized finishes
Whether you're building a load-bearing frame, a lightweight support structure, or a corrosion-resistant marine system, Guangyuan aluminum tubing delivers strength, performance, and durability.
Q1: How much weight can 6061 aluminum hold?
A1: 6061 aluminum can support thousands of pounds depending on the tubing’s size and wall thickness. A 2" x 2" square tube can hold over 2,500 lbs under axial load.
Q2: How strong is 2x2 aluminum tubing?
A2: A 2" x 2" 6061-T6 aluminum tube with a 0.125" wall can withstand around 2,500 lbs of axial load and 1,200 lbs of bending force over a 36-inch span.
Q3: Does aluminum tubing bend easily?
A3: Thinner aluminum tubing (like 6063) is easier to bend and form. 6061 tubing is more rigid and resists bending, making it ideal for structural applications.
Q4: What is the shear strength of aluminum tube?
A4: For 6061-T6 aluminum, shear strength is approximately 30,000 psi. Actual performance depends on tube geometry and wall thickness.
Q5: How much weight can 1 inch aluminum square tubing hold?
A5: A 1" x 1" 6061-T6 aluminum square tube with 0.125" wall thickness can hold up to 1,000 lbs under axial load and 500 lbs under bending.
Q6: How much weight can 1/8 aluminum angle hold?
A6: A 1/8" aluminum angle can typically support 300–600 lbs depending on its size, length, and how the load is applied.
Q7: Where can I find aluminum tubing strength charts?
A7: You can refer to engineering handbooks or manufacturer resources like Guangyuan, which provide aluminum square tubing strength charts and technical data.
The weight aluminum tubing can hold varies widely based on several factors — alloy, shape, wall thickness, and application. Whether you're using square tubing for a structural frame or round tubing for fluid transport, the key is matching the tube's properties to the load requirements.
Use tools like aluminum tubing strength calculators and strength charts to make informed decisions. When in doubt, consult a structural engineer or materials expert.
Guangyuan offers a full line of aluminum tubing products designed to meet a wide range of load-bearing needs. With precision manufacturing, certified alloys, and custom sizing, their tubes are ideal for industrial, architectural, and structural applications.
